Long Neck Square Type - 2 Flutes
S3013
✦Coated with Arti-Co. Excellent durability & lifespan
✦High precision and stable milling.
✦Application: Carbon Steel, Alloy Steel, Tool Steel, Stainless Steel, Cast Iron.

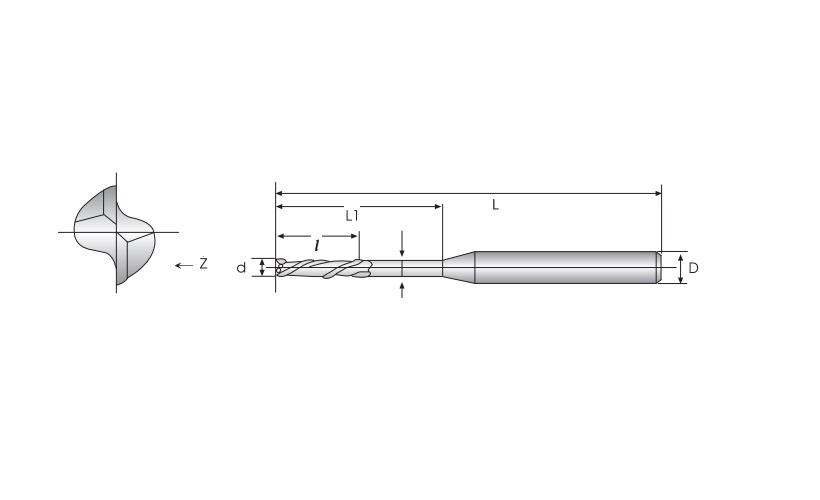

Specification
| d | l | D | L1 | Z | L |
|---|---|---|---|---|---|
| 0.5 | 0.75 | 4 | 2,4,6 | 2 | 50 |
| 0.6 | 0.9 | 4 | 2,4,6 | 2 | 50 |
| 0.7 | 1.1 | 4 | 4,6 | 2 | 50 |
| 0.8 | 1.2 | 4 | 4,6,8 | 2 | 50 |
| 0.9 | 1.4 | 4 | 6,8,10 | 2 | 50 |
| 1.0 | 1.5 | 4 | 6,8,10,12,16 | 2 | 50 |
| 1.2 | 1.8 | 4 | 6,8,10,12 | 2 | 50 |
| 1.4 | 2.1 | 4 | 6,10,16 | 2 | 50 |
| 1.5 | 2.3 | 4 | 6,8,10,12,14,16,18,20 | 2 | 50 |
| 1.6 | 2.4 | 4 | 6,8,10,12,14,16,18 | 2 | 50 |
| 1.8 | 2.7 | 4 | 8,14,20 | 2 | 50 |
| 2.0 | 3.0 | 4 | 6,8,10,12,14,16,18,20 | 2 | 50 |
| 2.5 | 4.0 | 4 | 8,10,12,14,16,20 | 2 | 50 |
| 3.0 | 4.5 | 6 | 8,10,12 | 2 | 50 |
| 3.0 | 4.5 | 6 | 16,20 | 2 | 60 |
| 3.0 | 4.5 | 6 | 25 | 2 | 75 |
| 3.5 | 6 | 6 | 12 | 2 | 50 |
| 3.5 | 6 | 6 | 16 | 2 | 60 |
| 3.5 | 6 | 6 | 20,25,30 | 2 | 75 |
| 4.0 | 6 | 6 | 12 | 2 | 50 |
| 4.0 | 6 | 6 | 16 | 2 | 60 |
| 4.0 | 6 | 6 | 20,25,30,35 | 2 | 75 |
