Square Type - 2 Flutes

Square Type - 2 Flutes

NBS-2F

Specification

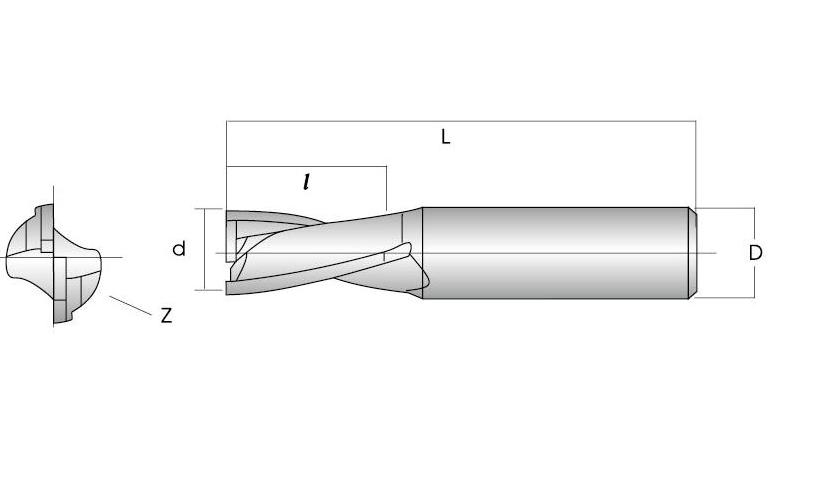

Square Type - 2 Flutes

d	l	D	Z	L
1	3	3,4,6	2	50
1.5	4	3,4,6	2	50
2	6	3,4,6	2	50
2.5	8	3,4,6	2	50
3	8	3,4,6	2	50
4	11	4,6	2	50
4.5	13	6	2	50
5	13	5,6	2	50
6	16	6	2	50
6.5	16	8	2	60
7	16	8	2	60
7.5	19	8	2	60
8	20	8	2	60
8.5	20	10	2	75
9	20	10	2	75
9.5	25	10	2	75
10	25	10	2	75
10.5	25	12	2	75
11	30	12	2	75
11.5	30	12	2	75
12	32	12	2	75
14	40	16	2	100
16	40	16	2	100
18	45	20	2	100
20	45	20	2	100
