Tapered Square Type - 2 Flutes
S2015
✦Coated with Arti-Co. Excellent durability & lifespan
✦High precision and stable milling.
✦Application: Carbon Steel, Alloy Steel, Tool Steel, Stainless Steel, Cast Iron.
Specification

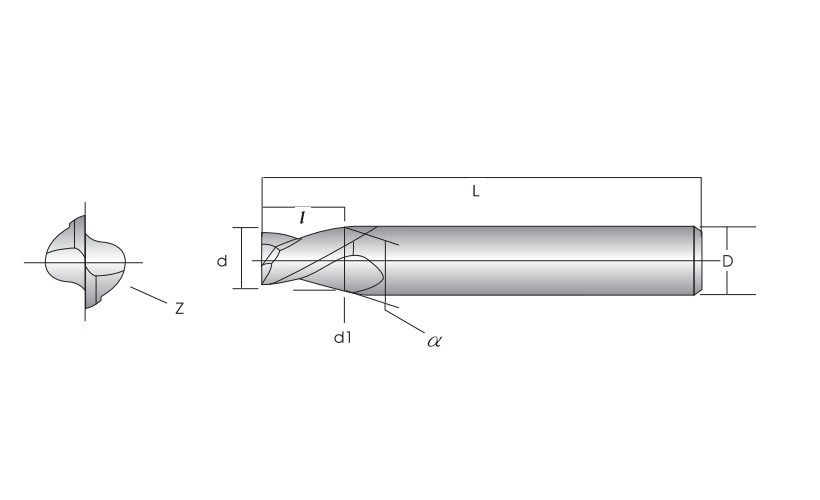

| d | l | D | α | d1 | Z | L |
|---|---|---|---|---|---|---|
| 0.5 | 2 | 4 | 30" | 0.53 | 2 | 50 |
| 0.5 | 2 | 4 | 1° | 0.57 | 2 | 50 |
| 0.5 | 2 | 4 | 1°30" | 0.60 | 2 | 50 |
| 0.5 | 2 | 4 | 2° | 0.64 | 2 | 50 |
| 0.5 | 2 | 4 | 2°30" | 0.67 | 2 | 50 |
| 0.5 | 2 | 4 | 3° | 0.71 | 2 | 50 |
| 0.5 | 2 | 4 | 5° | 0.85 | 2 | 50 |
| 0.5 | 2 | 4 | 7° | 0.99 | 2 | 50 |
| 0.5 | 2 | 4 | 10° | 1.21 | 2 | 50 |
| 1 | 4 | 4 | 30" | 1.07 | 2 | 50 |
| 1 | 4 | 4 | 1° | 1.14 | 2 | 50 |
| 1 | 4 | 4 | 1°30" | 1.21 | 2 | 50 |
| 1 | 4 | 4 | 2° | 1.28 | 2 | 50 |
| 1 | 4 | 4 | 2°30" | 1.35 | 2 | 50 |
| 1 | 4 | 4 | 3° | 1.42 | 2 | 50 |
| 1 | 4 | 4 | 5° | 1.70 | 2 | 50 |
| 1 | 4 | 4 | 7° | 1.98 | 2 | 50 |
| 1 | 4 | 4 | 10° | 2.41 | 2 | 50 |
| 1.5 | 5 | 4 | 30" | 1.59 | 2 | 50 |
| 1.5 | 5 | 4 | 1° | 1.67 | 2 | 50 |
| 1.5 | 5 | 4 | 1°30" | 1.76 | 2 | 50 |
| 1.5 | 5 | 4 | 2° | 1.85 | 2 | 50 |
| 1.5 | 5 | 4 | 2°30" | 1.93 | 2 | 50 |
| 1.5 | 5 | 4 | 3° | 2.02 | 2 | 50 |
| 1.5 | 5 | 4 | 5° | 2.37 | 2 | 50 |
| 1.5 | 5 | 4 | 7° | 2.73 | 2 | 50 |
| 1.5 | 5 | 4 | 10° | 3.26 | 2 | 50 |
| 2 | 6 | 4 | 30" | 2.10 | 2 | 50 |
| 2 | 6 | 4 | 1° | 2.21 | 2 | 50 |
| 2 | 6 | 4 | 1°30" | 2.31 | 2 | 50 |
| 2 | 6 | 4 | 2° | 2.41 | 2 | 50 |
| 2 | 6 | 4 | 2°30" | 2.52 | 2 | 50 |
| 2 | 6 | 4 | 3° | 2.62 | 2 | 50 |
| 2 | 6 | 4 | 5° | 3.05 | 2 | 50 |
| 2 | 6 | 4 | 7° | 3.47 | 2 | 50 |
| 2 | 6 | 4 | 10° | 4.11 | 2 | 50 |
| 2.5 | 8 | 4 | 30" | 2.64 | 2 | 50 |
| 2.5 | 8 | 4 | 1° | 2.78 | 2 | 50 |
| 2.5 | 8 | 4 | 1°30" | 2.91 | 2 | 50 |
| 2.5 | 8 | 4 | 2° | 3..05 | 2 | 50 |
| 2.5 | 8 | 4 | 2°30" | 3.20 | 2 | 50 |
| 2.5 | 8 | 4 | 3° | 3.33 | 2 | 50 |
| 2.5 | 8 | 4 | 5° | 3.90 | 2 | 50 |
| 2.5 | 8 | 6 | 7° | 4.46 | 2 | 50 |
| 2.5 | 8 | 6 | 10° | 5.32 | 2 | 50 |
| 3 | 10 | 6 | 30" | 3.17 | 2 | 50 |
| 3 | 10 | 6 | 1° | 3.35 | 2 | 50 |
| 3 | 10 | 6 | 1°30" | 3.52 | 2 | 50 |
| 3 | 10 | 6 | 2° | 3.69 | 2 | 50 |
| 3 | 10 | 6 | 2°30" | 3.87 | 2 | 50 |
| 3 | 10 | 6 | 3° | 4.05 | 2 | 50 |
| 3 | 10 | 6 | 5° | 4.72 | 2 | 50 |
| 3 | 10 | 6 | 7° | 5.45 | 2 | 50 |
| 3 | 10 | 8 | 10° | 6.53 | 2 | 60 |
| 4 | 15 | 6 | 30" | 4.26 | 2 | 50 |
| 4 | 15 | 6 | 1° | 4.52 | 2 | 50 |
| 4 | 15 | 6 | 1°30" | 4.79 | 2 | 50 |
| 4 | 15 | 6 | 2° | 5.04 | 2 | 50 |
| 4 | 15 | 6 | 2°30" | 5.31 | 2 | 50 |
| 4 | 15 | 6 | 3° | 5.57 | 2 | 50 |
| 4 | 15 | 8 | 5° | 6.62 | 2 | 60 |
| 4 | 15 | 8 | 7° | 7.68 | 2 | 60 |
| 5 | 20 | 6 | 30" | 5.34 | 2 | 50 |
| 5 | 20 | 6 | 1° | 5.70 | 2 | 50 |
| 5 | 20 | 8 | 1°30" | 6.04 | 2 | 60 |
| 5 | 20 | 8 | 2° | 6.39 | 2 | 60 |
| 5 | 20 | 8 | 2°30" | 6.74 | 2 | 60 |
| 5 | 20 | 8 | 3° | 7.10 | 2 | 60 |
| 5 | 20 | 10 | 5° | 8.50 | 2 | 75 |
| 5 | 20 | 10 | 7° | 9.91 | 2 | 75 |
| 6 | 20 | 8 | 30" | 6.35 | 2 | 60 |
| 6 | 20 | 8 | 1° | 6.70 | 2 | 60 |
| 6 | 20 | 8 | 1°30" | 7.05 | 2 | 60 |
| 6 | 20 | 8 | 2° | 7.40 | 2 | 60 |
| 6 | 20 | 8 | 2°30" | 7.75 | 2 | 60 |
| 6 | 20 | 8 | 3° | 8.10 | 2 | 60 |
| 6 | 20 | 10 | 5° | 9.50 | 2 | 75 |
| 8 | 25 | 10 | 30" | 8.44 | 2 | 75 |
| 8 | 25 | 10 | 1° | 8.87 | 2 | 75 |
| 8 | 25 | 10 | 1°30" | 9.31 | 2 | 75 |
| 8 | 25 | 10 | 2° | 9.74 | 2 | 75 |
| 8 | 25 | 12 | 2°30" | 10.15 | 2 | 75 |
| 8 | 25 | 12 | 3° | 10.62 | 2 | 75 |
| 8 | 25 | 12 | 5° | 12.37 | 2 | 75 |
| 10 | 35 | 12 | 30" | 10.61 | 2 | 75 |
| 10 | 35 | 12 | 1° | 11.22 | 2 | 75 |
| 10 | 35 | 12 | 1°30" | 11.83 | 2 | 75 |
| 10 | 35 | 12 | 2° | 12.44 | 2 | 75 |
| 10 | 35 | 16 | 2°30" | 13.06 | 2 | 100 |
| 10 | 35 | 16 | 3° | 13.67 | 2 | 100 |
| 10 | 35 | 16 | 5° | 16.12 | 2 | 100 |
