HSS-PM COMBO SPRIAL FLUTE TAPS FOR MULTI PURPOSE
ESFT-PM

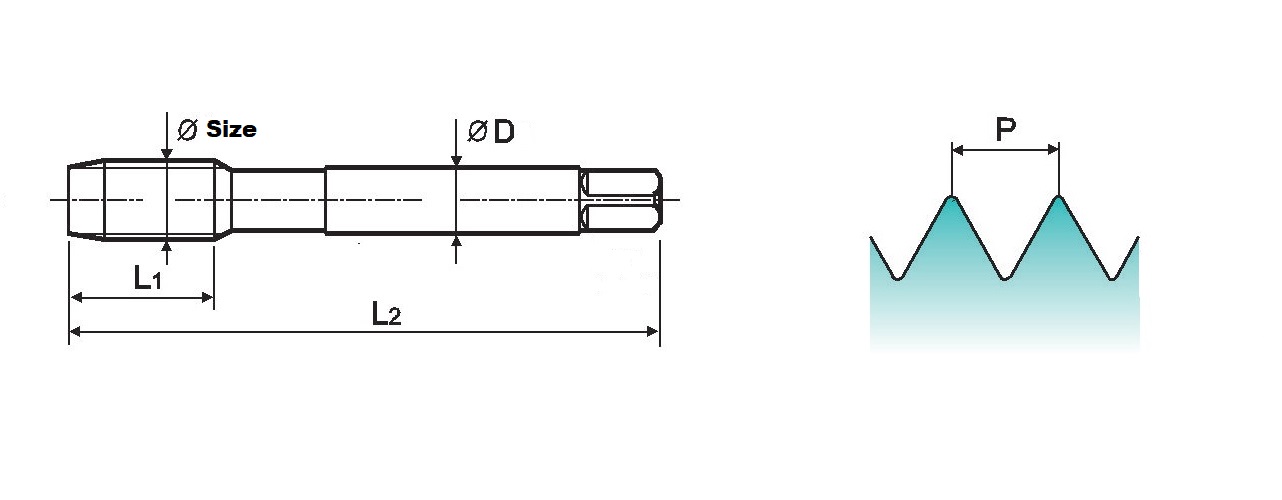

Specification
| Size | Pitch | L2 | L1 | D | Limit |
|---|
| M2 | 0.4 | 40 | 9.5 | 3.0 | GT1 |
| M2.3 | 0.4 | 42 | 9.5 | 3.0 | GT1 |
| M2.5 | 0.45 | 44 | 9.5 | 3.0 | GT1 |
| M2.6 | 0.45 | 44 | 9.5 | 3.0 | GT1 |
| M3 | 0.5 | 46 | 11 | 4.0 | GT2 |
| M3.5 | 0.6 | 48 | 13 | 4.0 | GT2 |
| M4 | 0.7 | 52 | 13 | 5.0 | GT2 |
| M5 | 0.8 | 60 | 16 | 5.5 | GT2 |
| M6 | 1.0 | 62 | 19 | 6.0 | GT2 |
| M7 | 1.0 | 65 | 19 | 6.2 | GT2 |
| M8 | 1.0 | 70 | 22 | 6.2 | GT2 |
| M8 | 1.25 | 70 | 22 | 6.2 | GT2 |
| M10 | 1.0 | 75 | 24 | 7.0 | GT2 |
| M10 | 1.25 | 75 | 24 | 7.0 | GT2 |
| M10 | 1.5 | 75 | 24 | 7.0 | GT2 |
| M12 | 1.0 | 82 | 29 | 8.5 | GT2 |
| M12 | 1.25 | 82 | 29 | 8.5 | GT2 |
| M12 | 1.5 | 82 | 29 | 8.5 | GT2 |
| M12 | 1.75 | 82 | 29 | 8.5 | GT2 |
| M14 | 1.0 | 88 | 30 | 10.5 | GT2 |
| M14 | 1.5 | 88 | 30 | 10.5 | GT2 |
| M14 | 2.0 | 88 | 30 | 10.5 | GT2 |
| M16 | 1.0 | 95 | 32 | 12.5 | GT2 |
| M16 | 1.5 | 95 | 32 | 12.5 | GT2 |
| M16 | 2.0 | 95 | 32 | 12.5 | GT2 |
| M18 | 1.0 | 100 | 37 | 14.0 | GT2 |
| M18 | 1.5 | 100 | 37 | 14.0 | GT2 |
| M18 | 2.0 | 100 | 37 | 14.0 | GT3 |
| M18 | 2.5 | 100 | 37 | 14.0 | GT3 |
| M20 | 1.0 | 105 | 37 | 15.0 | GT2 |
| M20 | 1.5 | 105 | 37 | 15.0 | GT3 |
| M20 | 2.0 | 105 | 37 | 15.0 | GT3 |
| M20 | 2.5 | 105 | 37 | 15.0 | GT3 |
| M22 | 1.0 | 115 | 38 | 17.0 | GT2 |
| M22 | 1.5 | 115 | 38 | 17.0 | GT3 |
| M22 | 2.0 | 115 | 38 | 17.0 | GT3 |
| M22 | 2.5 | 115 | 38 | 17.0 | GT3 |
| M24 | 1.0 | 120 | 45 | 19.0 | GT2 |
| M24 | 1.5 | 120 | 45 | 19.0 | GT3 |
| M24 | 2.0 | 120 | 45 | 19.0 | GT3 |
| M24 | 3.0 | 120 | 45 | 19.0 | GT3 |
