Specification

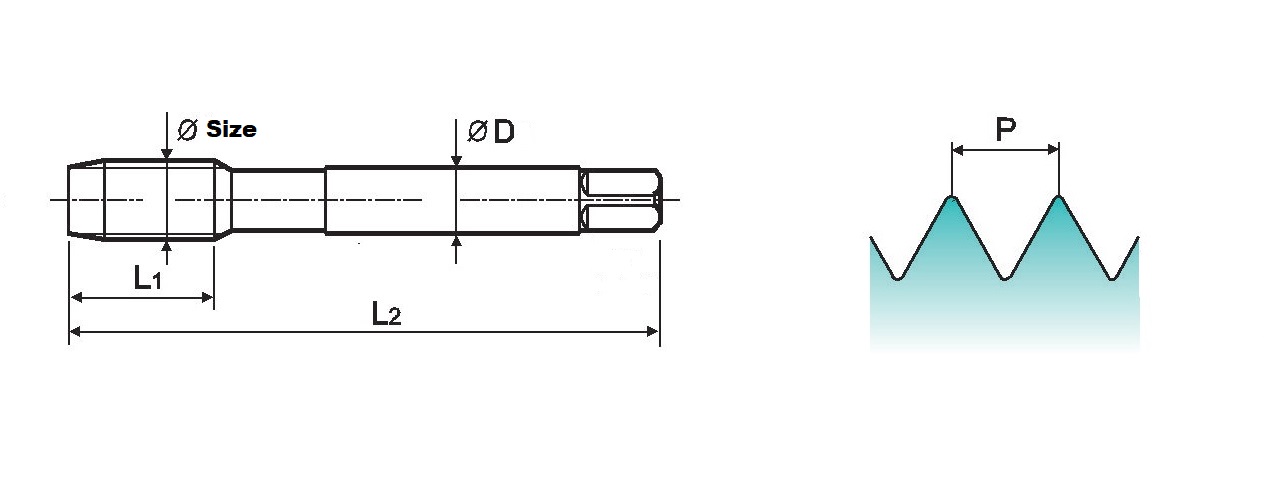

| Size | Pitch | L2 | L1 | D | Limit |
|---|
| M1.4 | 0.3 | 34 | 9.5 | 3.0 | GT1 |
| M1.6 | 0.35 | 36 | 9.5 | 3.0 | GT1 |
| M1.7 | 0.35 | 36 | 9.5 | 3.0 | GT1 |
| M1.8 | 0.35 | 36 | 9.5 | 3.0 | GT2 |
| M2 | 0.4 | 40 | 9.5 | 3.0 | GT2 |
| M2.2 | 0.45 | 42 | 9.5 | 3.0 | GT2 |
| M2.3 | 0.4 | 42 | 9.5 | 3.0 | GT2 |
| M2.5 | 0.45 | 44 | 9.5 | 3.0 | GT2 |
| M2.6 | 0.45 | 44 | 9.5 | 3.0 | GT2 |
| M3 | 0.5 | 46 | 11 | 4.0 | GT2 |
| M3.5 | 0.6 | 48 | 13 | 4.0 | GT2 |
| M4 | 0.5 | 52 | 13 | 5.0 | GT2 |
| M4 | 0.7 | 52 | 13 | 5.0 | GT2 |
| M4.5 | 0.75 | 55 | 13 | 5.0 | GT2 |
| M5 | 0.5 | 60 | 16 | 5.5 | GT2 |
| M5 | 0.8 | 60 | 16 | 5.5 | GT2 |
| M6 | 0.75 | 62 | 19 | 6.0 | GT2 |
| M6 | 1.0 | 62 | 19 | 6.0 | GT2 |
| M7 | 0.75 | 65 | 19 | 6.2 | GT2 |
| M7 | 1.0 | 65 | 19 | 6.2 | GT2 |
| M8 | 1.0 | 70 | 22 | 6.2 | GT3 |
| M8 | 1.25 | 70 | 22 | 6.2 | GT3 |
| M9 | 1.0 | 72 | 22 | 7.0 | GT3 |
| M10 | 1.0 | 75 | 24 | 7.0 | GT3 |
| M10 | 1.25 | 75 | 24 | 7.0 | GT3 |
| M10 | 1.5 | 75 | 24 | 7.0 | GT3 |
| M11 | 1.0 | 80 | 25 | 8.0 | GT3 |
| M12 | 1.0 | 82 | 29 | 8.5 | GT3 |
| M12 | 1.25 | 82 | 29 | 8.5 | GT3 |
| M12 | 1.5 | 82 | 29 | 8.5 | GT3 |
| M12 | 1.75 | 82 | 29 | 8.5 | GT4 |
| M14 | 1.0 | 88 | 30 | 10.5 | GT3 |
| M14 | 1.25 | 88 | 30 | 10.5 | GT3 |
| M14 | 1.5 | 88 | 30 | 10.5 | GT3 |
| M14 | 2.0 | 88 | 30 | 10.5 | GT4 |
| M15 | 1.0 | 90 | 30 | 10.5 | GT3 |
| M15 | 1.5 | 90 | 30 | 10.5 | GT3 |
| M16 | 1.0 | 95 | 32 | 12.5 | GT3 |
| M16 | 1.5 | 95 | 32 | 12.5 | GT3 |
| M16 | 2.0 | 95 | 32 | 12.5 | GT4 |
| M18 | 1.0 | 100 | 37 | 14 | GT3 |
| M18 | 1.5 | 100 | 37 | 14 | GT4 |
| M18 | 2.0 | 100 | 37 | 14 | GT4 |
| M18 | 2.5 | 100 | 37 | 14 | GT4 |
| M20 | 1.0 | 105 | 37 | 15 | GT3 |
| M20 | 1.5 | 105 | 37 | 15 | GT4 |
| M20 | 2.0 | 105 | 37 | 15 | GT4 |
| M20 | 2.5 | 105 | 37 | 15 | GT4 |
| M22 | 1.0 | 115 | 38 | 17 | GT3 |
| M22 | 1.5 | 115 | 38 | 17 | GT4 |
| M22 | 2.0 | 115 | 38 | 17 | GT4 |
| M22 | 2.5 | 115 | 38 | 17 | GT4 |
| M24 | 1.0 | 120 | 45 | 19 | GT3 |
| M24 | 1.5 | 120 | 45 | 19 | GT4 |
| M24 | 2.0 | 120 | 45 | 19 | GT4 |
| M24 | 3.0 | 120 | 45 | 19 | GT4 |
| M25 | 1.5 | 125 | 45 | 19 | GT4 |
| M25 | 2.0 | 125 | 45 | 19 | GT4 |
| M26 | 1.0 | 125 | 45 | 20 | GT3 |
| M26 | 1.5 | 125 | 45 | 20 | GT4 |
| M26 | 2.0 | 125 | 45 | 20 | GT4 |
| M27 | 1.5 | 130 | 45 | 20 | GT4 |
| M27 | 2.0 | 130 | 45 | 20 | GT4 |
| M27 | 3.0 | 130 | 45 | 20 | GT4 |
| M28 | 1.5 | 130 | 45 | 21 | GT4 |
| M28 | 2.0 | 130 | 45 | 21 | GT4 |
| M30 | 1.0 | 135 | 48 | 23 | GT3 |
| M30 | 1.5 | 135 | 48 | 23 | GT4 |
| M30 | 2.0 | 135 | 48 | 23 | GT4 |
| M30 | 3.0 | 135 | 48 | 23 | GT4 |
| M30 | 3.5 | 135 | 48 | 23 | GT5 |
| M36 | 4.0 | 155 | 57 | 28 | GT5 |
