HSS-EX COMBO SPRIAL POINT TAPS FOR MULTI PURPOSE - UNF
EPOT-UNF

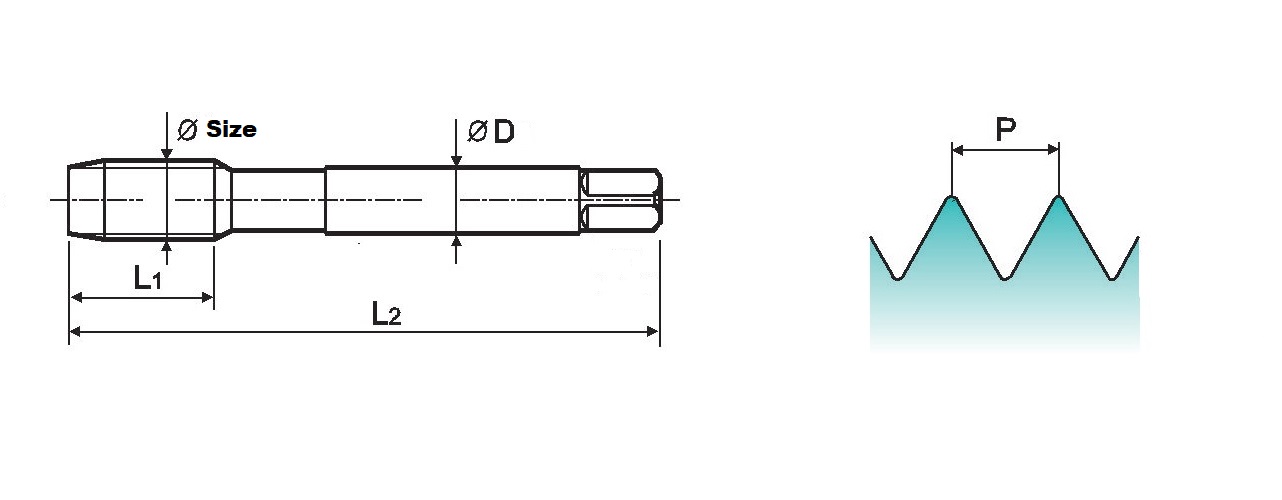

Specification
| Size | Pitch | L2 | L1 | D | Limit |
|---|
| NO.4 | 40UNF | 44 | 9.5 | 3.0 | GT2 |
| NO.5 | 44UNF | 46 | 11 | 4.0 | GT2 |
| NO.6 | 40UNF | 48 | 13 | 4.0 | GT2 |
| NO.8 | 36UNF | 52 | 13 | 5.0 | GT2 |
| NO.10 | 32UNF | 60 | 16 | 5.5 | GT2 |
| NO.12 | 28UNF | 60 | 16 | 5.5 | GT2 |
| NO.1/4 | 28UNF | 62 | 19 | 6.0 | GT2 |
| NO.5/16 | 24UNF | 70 | 22 | 6.1 | GT2 |
| NO.7/16 | 20UNF | 80 | 25 | 8.0 | GT2 |
| NO.1/2 | 20UNF | 85 | 29 | 9.0 | GT2 |
| NO.9/16 | 18UNF | 90 | 30 | 10.5 | GT2 |
| NO.5/8 | 18UNF | 95 | 32 | 12 | GT2 |
| NO.3/4 | 16UNF | 105 | 37 | 14 | GT2 |
| NO.7/8 | 14UNF | 115 | 38 | 17 | GT2 |
| NO.1" | 12UNF | 125 | 45 | 20 | GT2 |
