HSS-EX COMBO SPRIAL FLUTE TAPS FOR MULTI PURPOSE - W
ESFT-W
Specification

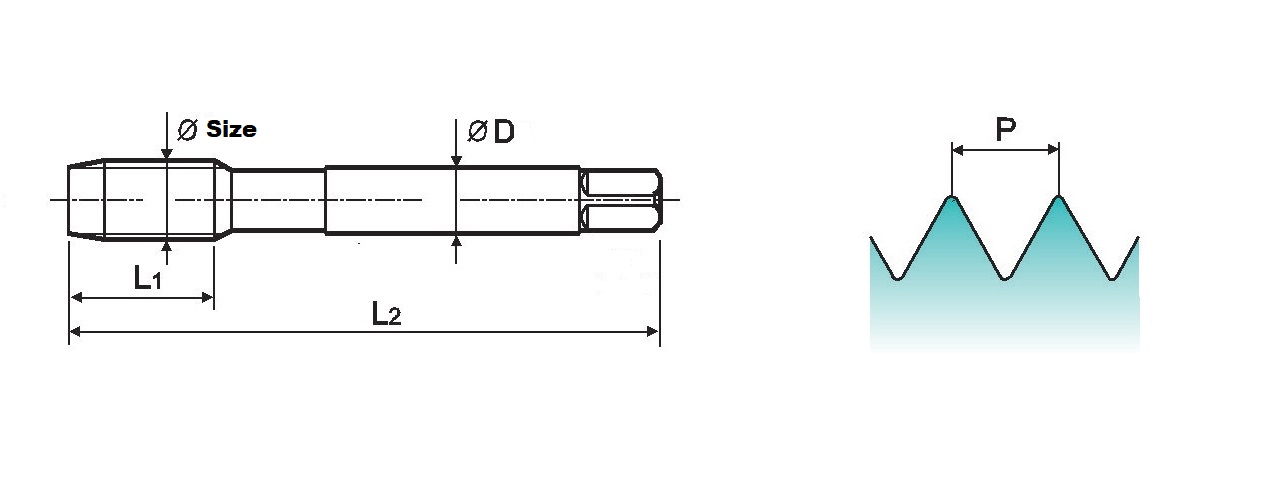

| Size | Pitch | L2 | L1 | D | Limit |
|---|
| W1/8 | 40 | 46 | 11 | 4.0 | GT1 |
| W5/32 | 32 | 52 | 13 | 4.0 | GT2 |
| W3/16 | 24 | 60 | 16 | 4.5 | GT2 |
| W1/4 | 20 | 62 | 19 | 6.0 | GT2 |
| W5/16 | 18 | 70 | 22 | 6.1 | GT2 |
| W3/8 | 16 | 75 | 24 | 7.0 | GT2 |
| W1/2 | 12 | 85 | 29 | 9.0 | GT2 |
| W5/8 | 11 | 95 | 32 | 12 | GT3 |
| W3/4 | 10 | 105 | 37 | 14 | GT3 |
| W7/8 | 9 | 115 | 38 | 17 | GT3 |
| W1" | 8 | 125 | 45 | 20 | GT3 |
