LONG SHANK COMBO SPRIAL FLUTE TAPS FOR MULTI PURPOSE
ESFTL-M

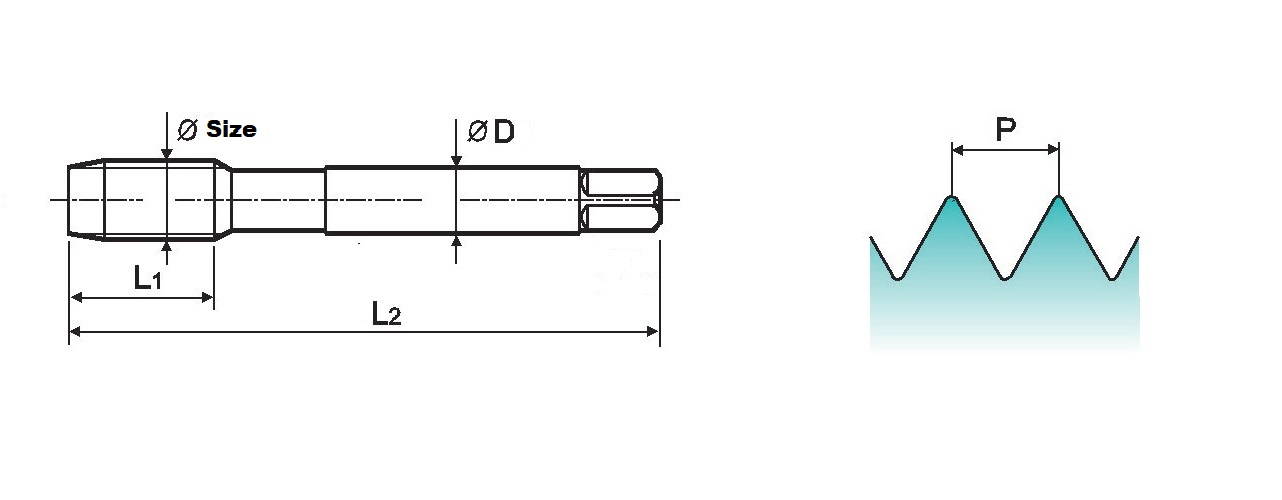

Specification
| Size | Pitch | L2 | L1 | D | Limit |
|---|
| M3 | 0.5 | 100 | 11 | 4.0 | GT1 |
| M3 | 0.5 | 120 | 11 | 4.0 | GT1 |
| M4 | 0.7 | 100 | 13 | 5.0 | GT2 |
| M4 | 0.7 | 120 | 13 | 5.0 | GT2 |
| M4 | 0.7 | 150 | 13 | 5.0 | GT2 |
| M5 | 0.8 | 100 | 16 | 5.5 | GT2 |
| M5 | 0.8 | 120 | 16 | 5.5 | GT2 |
| M5 | 0.8 | 150 | 16 | 5.5 | GT2 |
| M6 | 1.0 | 100 | 16 | 6.0 | GT2 |
| M6 | 1.0 | 120 | 16 | 6.0 | GT2 |
| M6 | 1.0 | 150 | 16 | 6.0 | GT2 |
| M8 | 1.25 | 100 | 22 | 6.2 | GT2 |
| M8 | 1.25 | 120 | 22 | 6.2 | GT2 |
| M8 | 1.25 | 150 | 22 | 6.2 | GT2 |
| M10 | 1.5 | 100 | 24 | 7.0 | GT2 |
| M10 | 1.5 | 120 | 24 | 7.0 | GT2 |
| M10 | 1.5 | 150 | 24 | 7.0 | GT2 |
| M12 | 1.75 | 100 | 29 | 8.5 | GT2 |
| M12 | 1.75 | 120 | 29 | 8.5 | GT2 |
| M12 | 1.75 | 150 | 29 | 8.5 | GT2 |
| M14 | 1.5 | 120 | 30 | 10.5 | GT2 |
| M14 | 1.5 | 150 | 30 | 10.5 | GT2 |
| M14 | 2.0 | 120 | 30 | 10.5 | GT2 |
| M14 | 2.0 | 150 | 30 | 10.5 | GT2 |
| M16 | 1.5 | 120 | 32 | 12.5 | GT2 |
| M16 | 1.5 | 150 | 32 | 12.5 | GT2 |
| M16 | 2.0 | 120 | 32 | 12.5 | GT2 |
| M16 | 2.0 | 150 | 32 | 12.5 | GT2 |
| M18 | 2.5 | 150 | 37 | 14.0 | GT3 |
| M18 | 2.5 | 200 | 37 | 14.0 | GT3 |
| M20 | 2.5 | 150 | 37 | 15.0 | GT3 |
| M20 | 2.5 | 200 | 37 | 15.0 | GT3 |
| M24 | 3.0 | 150 | 45 | 19.0 | GT3 |
| M24 | 3.0 | 200 | 45 | 19.0 | GT3 |
