HSS TWIST DRILLS STRAIGHT SHANK - TIN TIP COATED

HSS TWIST DRILLS STRAIGHT SHANK - TIN TIP COATED

HJS

Specification

HSS TWIST DRILLS STRAIGHT SHANK - TIN TIP COATED

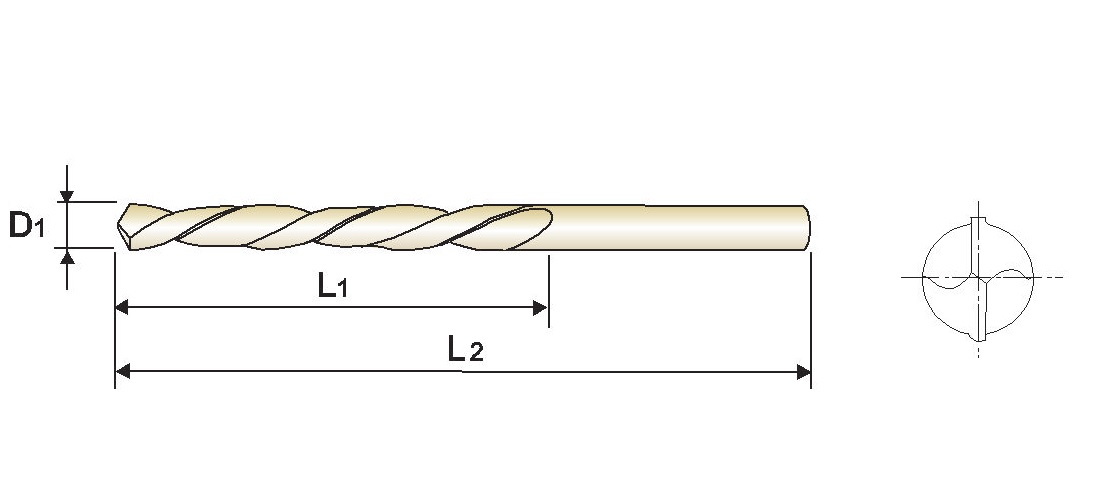

D1	L1	L2
1.0	18	40
1.1	20	42
1.2	20	42
1.3	22	45
1.4	23	48
1.5	23	48
1.6	25	50
1.7	25	50
1.8	28	52
1.9	28	52
2.0	29	55
2.1	29	55
2.2	33	58
2.3	33	58
2.4	35	61
2.5	35	61
2.6	37	64
2.7	37	64
2.8	39	67
2.9	42	71
3.0	42	71
3.1	42	71
3.2	42	71
3.3	45	73
3.4	45	73
3.5	45	73
3.6	48	76
3.7	48	76
3.8	48	76
3.9	51	79
4.0	54	83
4.1	54	83
4.2	54	83
4.3	54	83
4.4	56	86
4.5	56	86
4.6	56	86
4.7	59	89
4.8	59	89
4.9	62	92
5.0	62	92
5.1	62	92
5.2	64	95
5.3	64	95
5.4	64	95
5.5	64	95
5.6	67	98
5.7	67	98
5.8	67	98
5.9	67	98
6.0	70	102
6.1	70	102
6.2	70	102
6.3	70	102
6.4	73	105
6.5	73	105
6.6	73	105
6.7	73	105
6.8	73	105
6.9	73	105
7.0	73	105
7.1	75	108
7.2	75	108
7.3	75	108
7.4	78	111
7.5	78	111
7.6	78	111
7.7	81	114
7.8	81	114
7.9	81	114
8.0	81	114
8.1	84	117
8.2	84	117
8.3	84	117
8.4	87	121
8.5	87	121
8.6	87	121
8.7	87	121
8.8	89	124
8.9	89	124
9.0	89	124
9.1	89	124
9.2	92	127
9.3	92	127
9.4	92	127
9.5	92	127
9.6	95	130
9.7	95	130
9.8	95	130
9.9	95	130
10.0	95	130
10.1	98	133
10.2	98	133
10.3	98	133
10.4	98	133
10.5	100	137
10.6	100	137
10.7	100	137
10.8	103	140
10.9	103	140
11.0	103	140
11.1	103	140
11.2	106	143
11.3	106	143
11.4	106	143
11.5	106	143
11.6	109	146
11.7	109	146
11.8	109	146
11.9	109	146
12.0	111	149
12.1	111	149
12.2	111	149
12.3	111	149
12.4	114	152
12.5	114	152
12.6	114	152
12.7	114	152
12.8	114	152
12.9	114	152
13.0	114	152
