GESSWEIN DIEMAKER STONE
GS-DM
✦A great general-purpose finishing stone.
✦Contains brown aluminum oxide which is tough, blocky, and a faceted abrasive grit.
✦Generally used wet but can be used dry for roughing applications.
✦All mold and tool steels of all hardness such as A2, D2, S7, H13, P20, 420SS, and soft non-ferrous metals such as Aluminum and Beryllium.

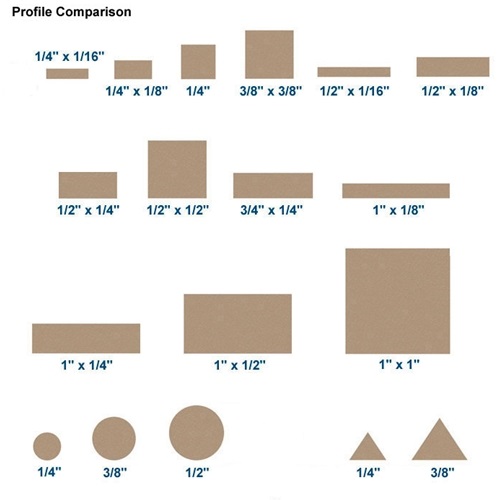

✦Wide array of sizes and shapes including Hybrid (half-square/half-round).
Specification
| Code | Grits Available | Dimensions |
|---|---|---|
| 2210 | 220 | 4"X1/4"X1/16" |
| 2310 | 320 | 4"X1/4"X1/16" |
| 2410 | 400 | 4"X1/4"X1/16" |
| 2610 | 600 | 4"X1/4"X1/16" |
| 2910 | 900 | 4"X1/4"X1/16" |
| - | - | - |
| 2101 | 150 | 6"X1/4"X1/8" |
| 2201 | 220 | 6"X1/4"X1/8" |
| 2301 | 320 | 6"X1/4"X1/8" |
| 2401 | 400 | 6"X1/4"X1/8" |
| 2601 | 600 | 6"X1/4"X1/8" |
| 2901 | 900 | 6"X1/4"X1/8" |
| - | - | - |
| 2102 | 150 | 6"X1/4"X1/4" |
| 2202 | 220 | 6"X1/4"X1/4" |
| 2302 | 320 | 6"X1/4"X1/4" |
| 2402 | 400 | 6"X1/4"X1/4" |
| 2602 | 600 | 6"X1/4"X1/4" |
| 2902 | 900 | 6"X1/4"X1/4" |
| - | - | - |
| 2103 | 150 | 6"X1/2"X1/8" |
| 2203 | 220 | 6"X1/2"X1/8" |
| 2303 | 320 | 6"X1/2"X1/8" |
| 2403 | 400 | 6"X1/2"X1/8" |
| 2603 | 600 | 6"X1/2"X1/8" |
| 2903 | 900 | 6"X1/2"X1/8" |
| - | - | - |
| 2108 | 150 | 6"X3/8"X3/8" |
| 2208 | 220 | 6"X3/8"X3/8" |
| 2308 | 320 | 6"X3/8"X3/8" |
| 2408 | 400 | 6"X3/8"X3/8" |
| 2608 | 600 | 6"X3/8"X3/8" |
| 2908 | 900 | 6"X3/8"X3/8" |
| - | - | - |
| 2109 | 150 | 6"X3/4"X1/4" |
| 2209 | 220 | 6"X3/4"X1/4" |
| 2309 | 320 | 6"X3/4"X1/4" |
| 2409 | 400 | 6"X3/4"X1/4" |
| 2609 | 600 | 6"X3/4"X1/4" |
| 2909 | 900 | 6"X3/4"X1/4" |
| - | - | - |
| 2112 | 120 | 6"X1"X1/4" |
| 2212 | 220 | 6"X1"X1/4" |
| 2312 | 320 | 6"X1"X1/4" |
| 2412 | 400 | 6"X1"X1/4" |
| 2612 | 600 | 6"X1"X1/4" |
| - | - | - |
| 2100 | 150 | 6"X1/2"X1/16" |
| 2200 | 220 | 6"X1/2"X1/16" |
| 2300 | 320 | 6"X1/2"X1/16" |
| 2400 | 400 | 6"X1/2"X1/16" |
| 2600 | 600 | 6"X1/2"X1/16" |
| 2900 | 900 | 6"X1/2"X1/16" |
| - | - | - |
| 2104 | 150 | 6"X1/2"X1/4" |
| 2204 | 220 | 6"X1/2"X1/4" |
| 2304 | 320 | 6"X1/2"X1/4" |
| 2404 | 400 | 6"X1/2"X1/4" |
| 2604 | 600 | 6"X1/2"X1/4" |
| 2904 | 900 | 6"X1/2"X1/4" |
| - | - | - |
| 2105 | 150 | 6"X1/2"X1/2" |
| 2205 | 220 | 6"X1/2"X1/2" |
| 2305 | 320 | 6"X1/2"X1/2" |
| 2405 | 400 | 6"X1/2"X1/2" |
| 2605 | 600 | 6"X1/2"X1/2" |
| 2905 | 900 | 6"X1/2"X1/2" |
| - | - | - |
| 2111 | 120 | 6"X1"X1/8" |
| 2211 | 220 | 6"X1"X1/8" |
| 2311 | 320 | 6"X1"X1/8" |
| 2411 | 400 | 6"X1"X1/8" |
| 2611 | 600 | 6"X1"X1/8" |
| - | - | - |
| 2107 | 150 | 6"X1"X1/2" |
| 2207 | 220 | 6"X1"X1/2" |
| 2307 | 320 | 6"X1"X1/2" |
| 2407 | 400 | 6"X1"X1/2" |
| 2607 | 600 | 6"X1"X1/2" |
| 2907 | 900 | 6"X1"X1/2" |
| - | - | - |
| 2106 | 150 | 6"X1"X1" |
| 2206 | 220 | 6"X1"X1" |
| 2306 | 320 | 6"X1"X1" |
| 2406 | 400 | 6"X1"X1" |
| 2606 | 600 | 6"X1"X1" |
| - | - | - |
| 3102 | 150 | 6"X1/4"XRound |
| 3202 | 220 | 6"X1/4"XRound |
| 3302 | 320 | 6"X1/4"XRound |
| 3402 | 400 | 6"X1/4"XRound |
| 3602 | 600 | 6"X1/4"XRound |
| 3902 | 900 | 6"X1/4"XRound |
| - | - | - |
| 3108 | 150 | 6"X3/8"XRound |
| 3208 | 220 | 6"X3/8"XRound |
| 3308 | 320 | 6"X3/8"XRound |
| 3408 | 400 | 6"X3/8"XRound |
| 3608 | 600 | 6"X3/8"XRound |
| 3908 | 900 | 6"X3/8"XRound |
| - | - | - |
| 3105 | 150 | 6"X1/2"XRound |
| 3205 | 220 | 6"X1/2"XRound |
| 3305 | 320 | 6"X1/2"XRound |
| 3405 | 400 | 6"X1/2"XRound |
| 3605 | 600 | 6"X1/2"XRound |
| 3905 | 900 | 6"X1/2"XRound |
| - | - | - |
| 21T2 | 150 | 6"X1/4" |
| 22T2 | 220 | 6"X1/4" |
| 23T2 | 320 | 6"X1/4" |
| 24T2 | 400 | 6"X1/4" |
| - | - | - |
| 21T8 | 150 | 6"X3/8" |
| 22T8 | 220 | 6"X3/8" |
| 23T8 | 320 | 6"X3/8" |
| 24T8 | 400 | 6"X3/8" |
