Specification

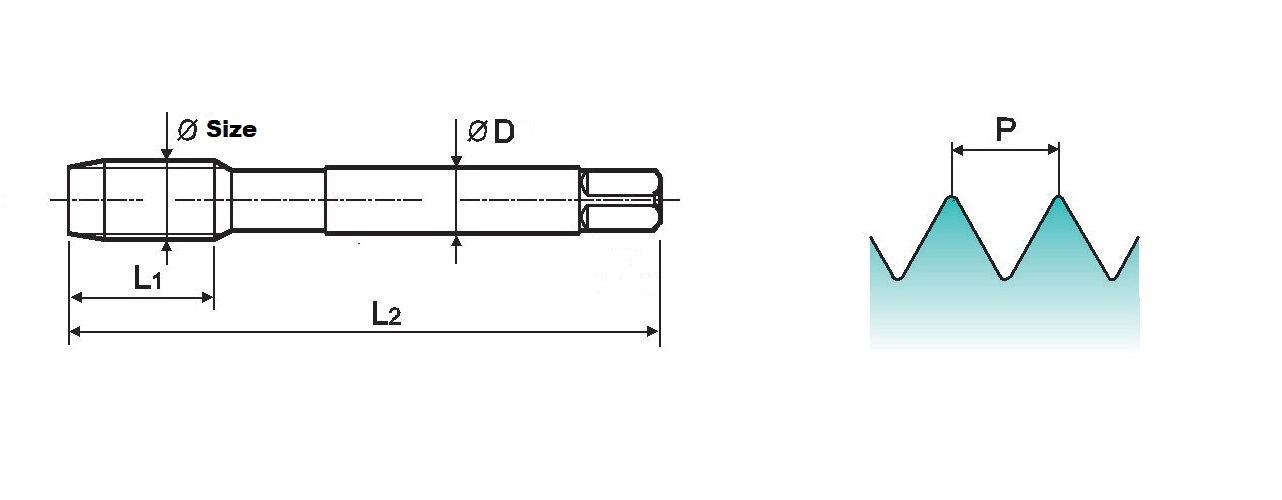

| Size | Pitch | L2 | L1 | D | Limit |
|---|---|---|---|---|---|
| NO.4 | 40UNC | 44 | 9.5 | 3.0 | GT2 |
| NO.5 | 40UNC | 46 | 11 | 4.0 | GT2 |
| NO.6 | 32UNC | 48 | 13 | 4.0 | GT2 |
| NO.8 | 32UNC | 52 | 13 | 5.0 | GT2 |
| NO.10 | 24UNC | 60 | 16 | 5.5 | GT2 |
| NO.12 | 24UNC | 60 | 16 | 5.5 | GT2 |
| NO.1/4 | 20UNC | 62 | 19 | 6.0 | GT2 |
| NO.5/16 | 18UNC | 70 | 22 | 6.1 | GT2 |
| NO.3/8 | 16UNC | 75 | 24 | 7.0 | GT2 |
| NO.1/2 | 13UNC | 85 | 29 | 9.0 | GT2 |
| NO.5/8 | 11UNC | 95 | 32 | 12 | GT2 |
| NO.3/4 | 10UNC | 105 | 37 | 14.5 | GT2 |
| NO.7/8 | 9UNC | 115 | 38 | 17 | GT2 |
| NO.1" | 8UNC | 125 | 45 | 20 | GT2 |
